DY-119LF

DY-119LF

Forged t-pipe body, Full Port

1/4”-2”600WOG,150WSP

2-1/2”-4”400WOG,100WSP)(600WOG,150WSP

Threaded comply With ANSI B1.20.1

Meet Mss sp-100 Speacification

产品详情

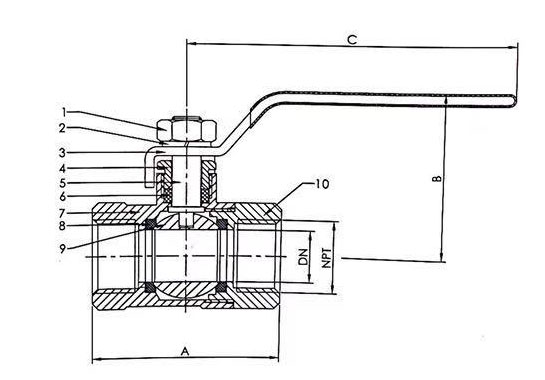

MATERIAL LIST

NPT

DN

A

B

C

1/4

10

42.9

43.5

88

3/8

10

42.9

43.5

88

1/2

15

52.6

47

88

3/4

19

60.4

54

110

1

25

73.5

58

110

1 1/4

32

83

71

140

1 1/2

40

92

76

140

2

50

112

83

140

2 1/2

65

152

116.5

230

3

75

165

123.5

230

4

99

197

144

254



Packing Specification



Specification

Weight(g)

Each Box /PCS

Size of Box(CM)

Each Case/PCS

Size of Case(CM)

NW(kg)

GW(kg)

1/4"

137

15

15.5*14*-6.2

120

30*17.5*28

16.3

17.3

3/8"

137

15

15.5*14*6.2

120

30*17.5*28

16.5

17.5

1/2"

228

15

17.5*15.5*6.5

120

33*19.5*28.5

27.3

28.3

3/4"

332

10

20*15.5*7.5

60

33*22*25

19.9

21

1"

455

8

19*15.5*8

48

33*21*26.5

21.8

23

1-1/4"

770

4

19*11.5*10

24

33*21*26.5

18.5

19.5

1-1/2"

1030

2

19*11.3*7

24

37.5*21*31

24.7

25.7

2"

1600

2

21*12.5*8.5

12

27.5*25.5*28.5

19.2

20

2-1/2"

3250

2

30.5*11.8*10.7

6

34*33*20.5

19.5

20.5

3"

4000

2

31.5*19.7*12.1

4

34.5*26*21.5

16

17

4"

7500

-

-
