DY-120

DY-120

Forged t-pipe body, Full Port

1/2”-2”600WOG,150WSP

2-1/2”-4”400WOG,100WSP)(600WOG,150WSP

Solder Ends comply With ANSI B16.18

Meet Mss sp-110 Speacification

产品详情

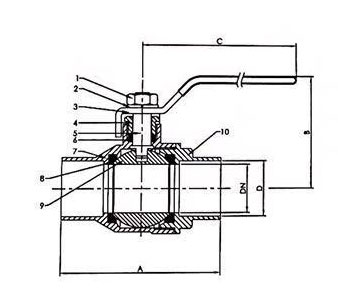

MATERIAL LIST

NPT

DN

A

B

C

1/2

15

57

47

88

3/4

19

71.5

54

110

1

25

84

58

110

1 1/4

32

104.5

71

140

1 1/2

40

113

76

140

2

50

135.5

83

140

2 1/2

65

162

107.5

201

3

75

182

128

251

4

99

234

145

251



Packing Specification



Specification

Weight(g)

Each Box /PCS

Size of Box(CM)

Each Case/PCS

Size of Case(CM)

NW(kg)

GW(kg)

1/2"

191

15

17.5*15.5*6.5

120

33*19.5*28.5

22.8

23.8

3/4"

324

10

20*15.5*7.5

60

33*22*25

19.4

20.4

1"

418

8

19*17*8

48

36*21*27.5

21

22

1-1/4"

740

4

21*11.5*10

24

33*22.5*25.5

17.8

18.8

1-1/2"

1095

2

22.8*11.3*7

24

37*24.5*31

26.2

27.2

2"

1590

2

27.2*12.5*8.5

12

29*27.5*28

19

20

2-1/2"

2950

2

32.5*16.3*10.7

6

34*34*18

17.7

18.7

3"

4100

2

36.5*19.2*12.1

4

38*26*21

16.4

17.4

4"

6900

-

-

2

48*16.7*24

13.8

14.8
