DY-120LF
DY-120LF
Forged t-pipe body, Full Port
1/2”-2”（600WOG,150WSP）
2-1/2”-4”（400WOG,100WSP）（600WOG,150WSP）
Solder Ends comply With ANSI B16.18
Meet Mss sp-110 Speacification
|

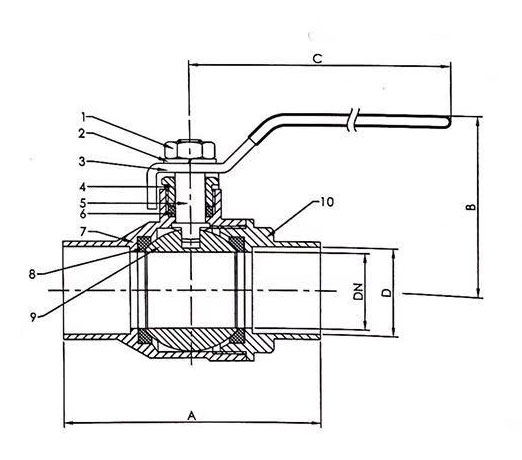

NPT |
DN |
A |
B |
C |
|
1/2” |
15 |
57 |
47 |
88 |
|
3/4” |
19 |
71.5 |
54 |
110 |
|
1” |
25 |
84 |
58 |
110 |
|
1 1/4” |
32 |
104.5 |
71 |
140 |
|
1 1/2” |
40 |
113 |
76 |
140 |
|
2” |
50 |
135.5 |
83 |
140 |
|
2 1/2” |
65 |
162 |
107.5 |
201 |
|
3” |
75 |
182 |
128 |
251 |
|
4” |
99 |
234 |
145 |
251 |
