DY-1001
DY-1001
Gasting body.STD Port.Rinf Stem
3/8”-4”(150WGO,200WOG)
Threaded Comply With ANSI B1.20.1
Note：Plain or Bronze Coating
MATERIAL LIST
|
Model |
3/8” |
1/2” |
3/4” |
1” |
1 1/4” |
1 1/2 |
2” |
2 1/2” |
3” |
4” |
|

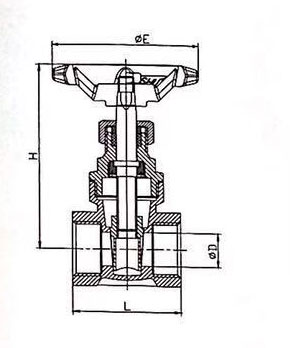

ΦD |
11 |
13 |
16 |
19.5 |
25 |
40 |
54.1 |
52 |
58 |
76 |
|
L |
36 |
41 |
44.5 |
50.4 |
53.5” |
93 |
133 |
69.5 |
80 |
95 |
|
H（Ref） |
65.5 |
67 |
74 |
81 |
93 |
88.5 |
71.5 |
151 |
171 |
208 |
|
A（Ref） |
54 |
54 |
54 |
59 |
73 |
150 |
136 |
97.5 |
109 |
130 |
