DY-179B
DY-179B
Forged t-pipe body, Full Port
3/4”1 1/2”（600WOG,150WSP）
Pipe Threaded comply With ANSI B16.18
Meet Mss sp-110 Speacification

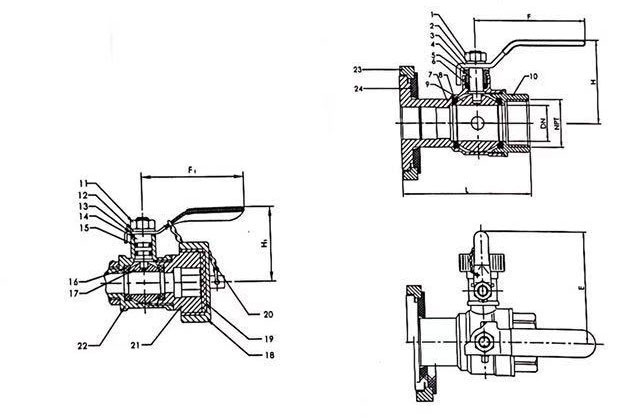

MATERIAL LIST
|
NPT |
DN |
L |
H |
F |
E |
F2 |
H2 |
|
3/4” |
19 |
78.2 |
53.5 |
110 |
72.5 |
41 |
29.5 |
|
1” |
25 |
105.5 |
57.5 |
110 |
77 |
41 |
29.5 |
|
1 1/4” |
29 |
109.5 |
61.5 |
110 |
80.5 |
41 |
29.5 |
|
1 1/2” |
37 |
127 |
67 |
110 |
87 |
41 |
29.5 |
